Air Lift 3H Electronic Air Control System:
(Part # 10037368)

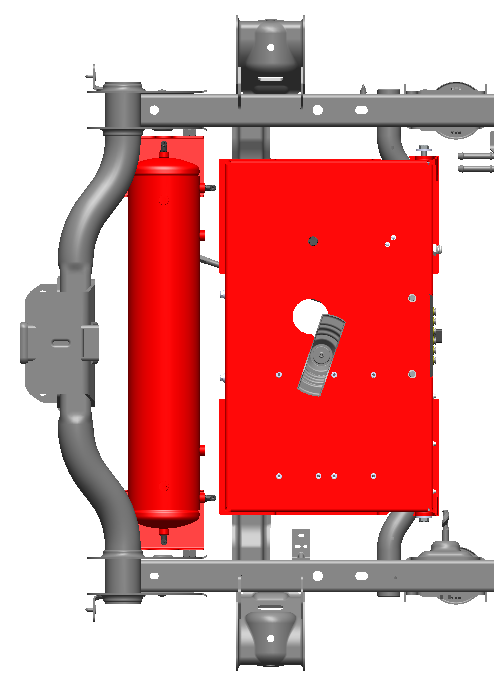

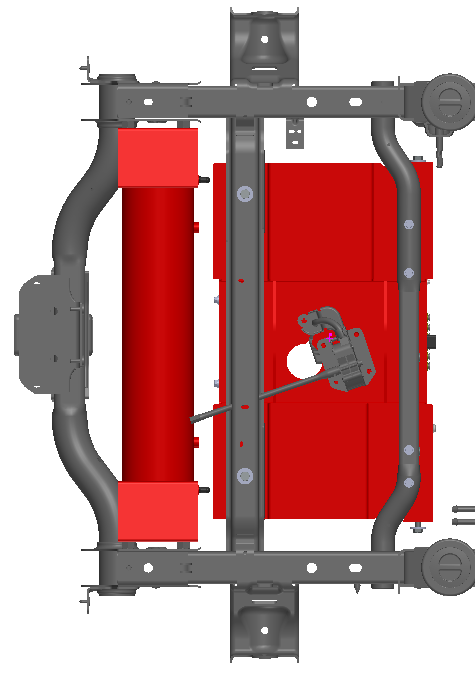

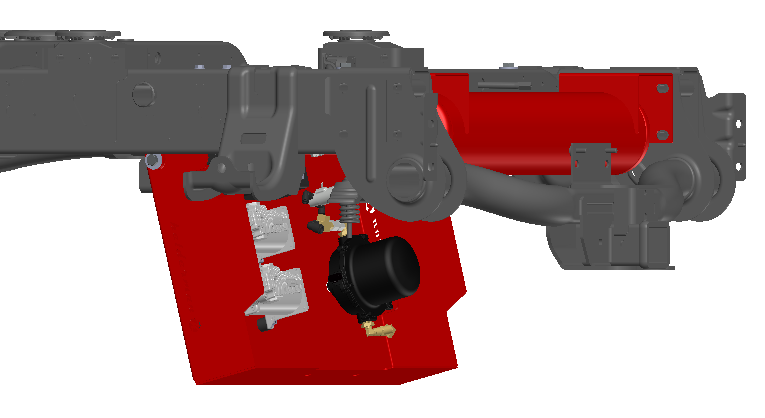

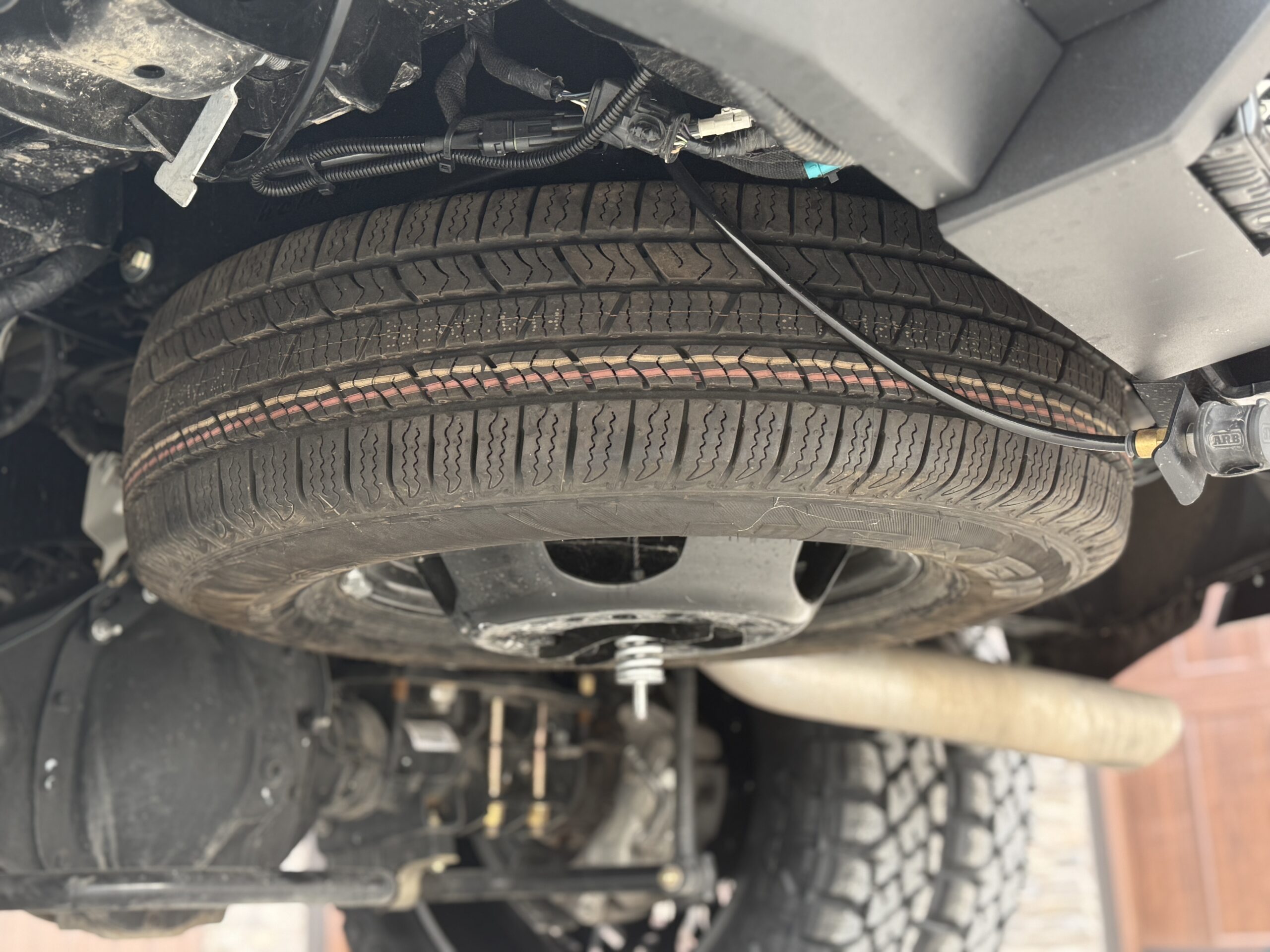

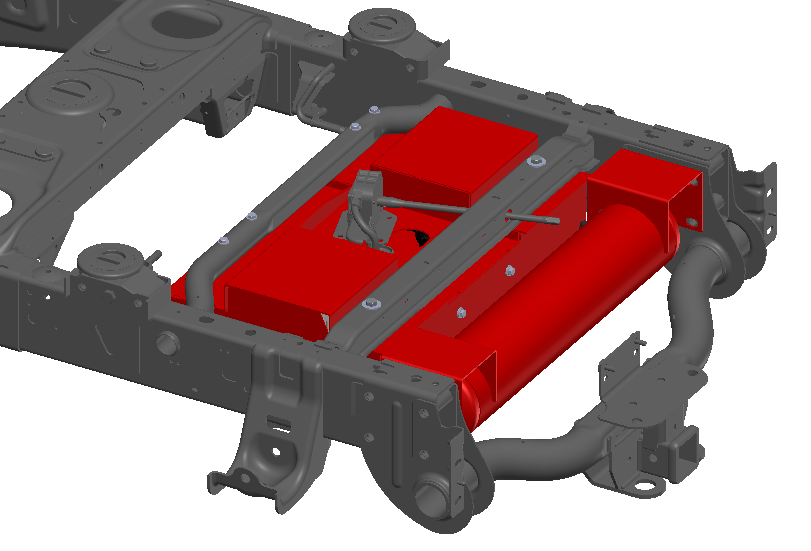

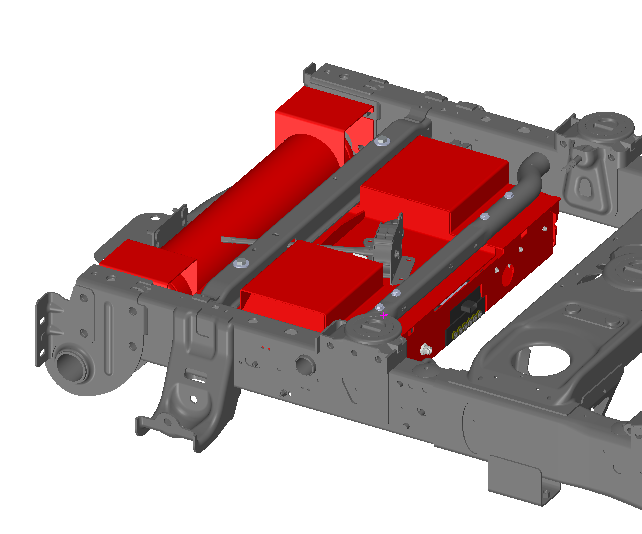

The latest evolution of Kelderman’s air suspension technology is here. This upgraded version of the Air Lift 3H Air Control System is engineered specifically for 2025 and newer RAM 2500 & RAM 3500 Pickup trucks equipped with our full four-corner air ride suspension kit. Unlike the standard 3H system, this configuration is designed to retain the factory spare tire in its original location, providing superior fitment and functionality for the latest RAM platform. This is ideal for stock height kits where the OEM spare tire is still something you want to travel with.
This premium control system combines Air Lift Company’s cutting-edge electronics with Kelderman’s proven air management components. The system includes the Air Lift Performance 3H controller, offering advanced features like:
-
Preset ride heights
-
Individual air spring control
-
Digital pressure monitoring
-
Bluetooth connectivity via a free mobile app
-
Automatic self-leveling to maintain ideal ride height when towing or hauling
No more squat when hooking up a trailer—ride height sensors detect changes and automatically adjust each airbag to keep your truck level and riding smoothly.

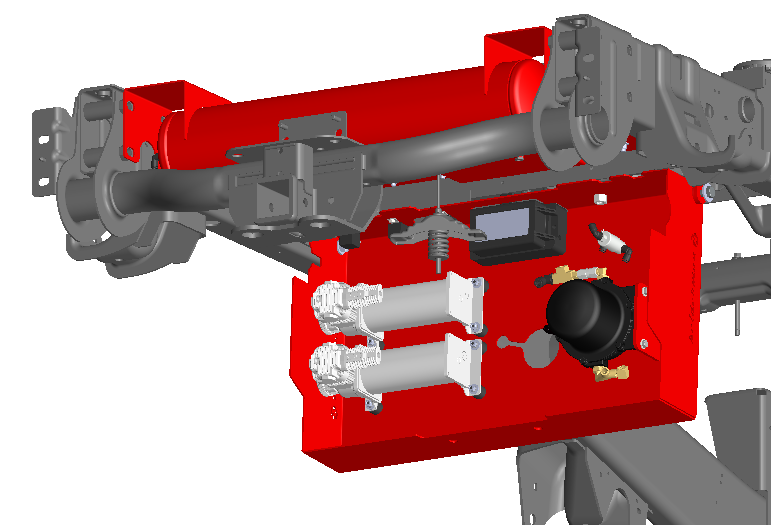

This vehicle-specific 3H kit comes complete with:
-
(2) VIAIR 444C air compressors
-
(1) 3-gallon air tank
- (1) Custom 4-gallon rear mount tank
-
(4) electronic ride height sensors
-
Air dryer
-
Wiring harnesses
-
Weather-resistant compressor enclosure
-
Valve manifold
-
In-cab remote control
The control system is also available with an in-cab mount for the Air Lift 3H remote that is also specific to the 2019+ RAM trucks. Add the 2019+ RAM overhead console mount (Part # 10009358) to install the remote into the upper headliner area where the OEM sunglasses holder is. This provides an extremely clean, factory-style mount for the 3H remote. Take full command of your Kelderman suspension system with a setup designed to fit your 2025+ RAM 2500/3500 without compromise.
