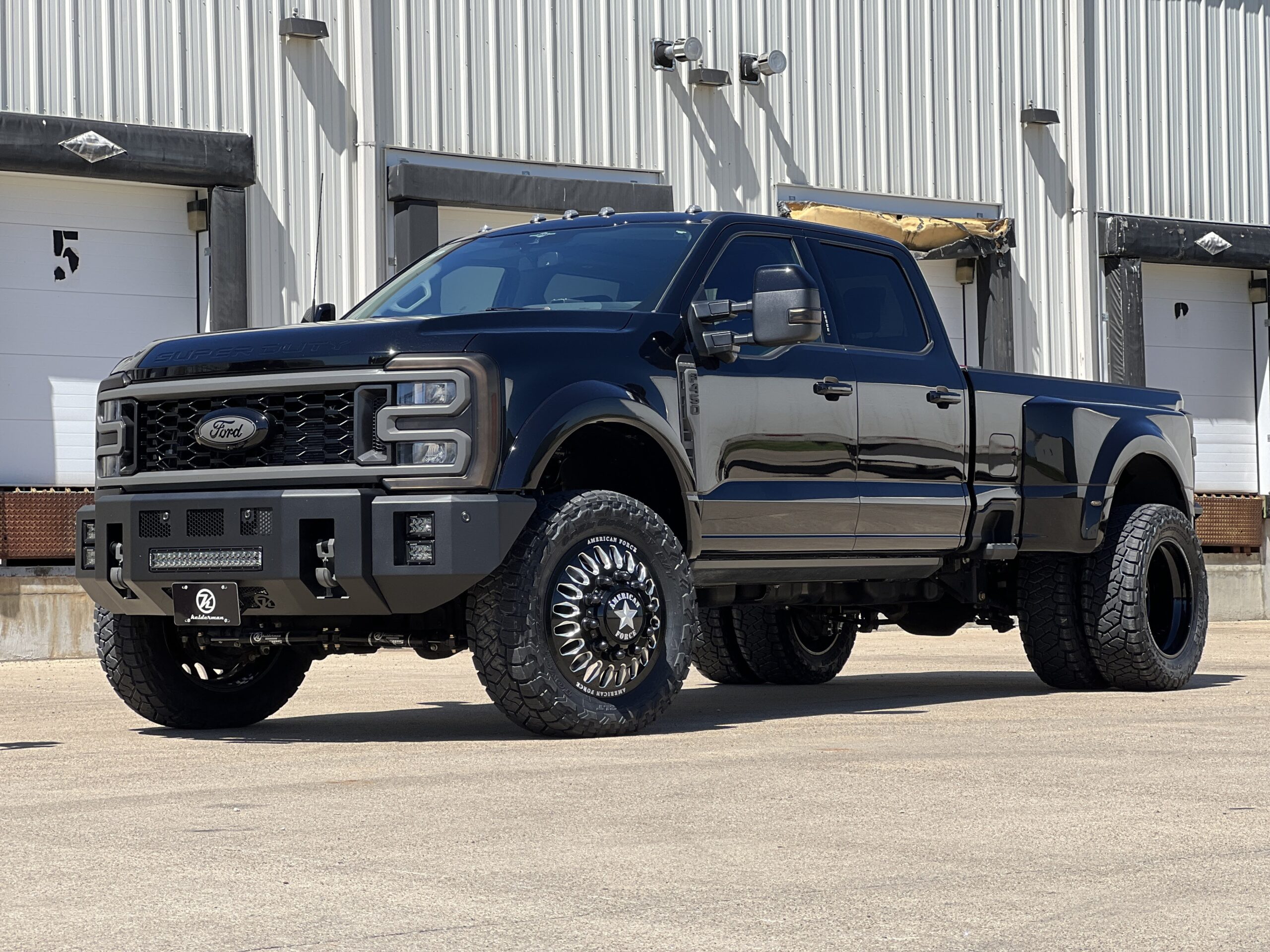

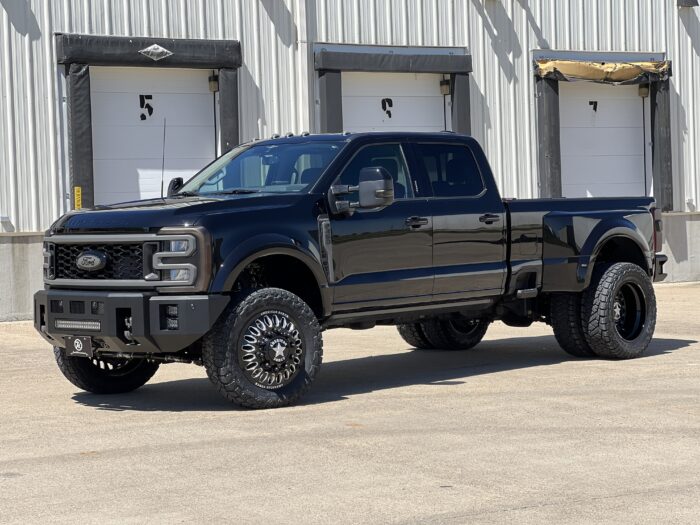

2023+ Ford F-250/350/450 4X4 Pickup 2-3″ Front & Rear Air Suspension Lift Kit

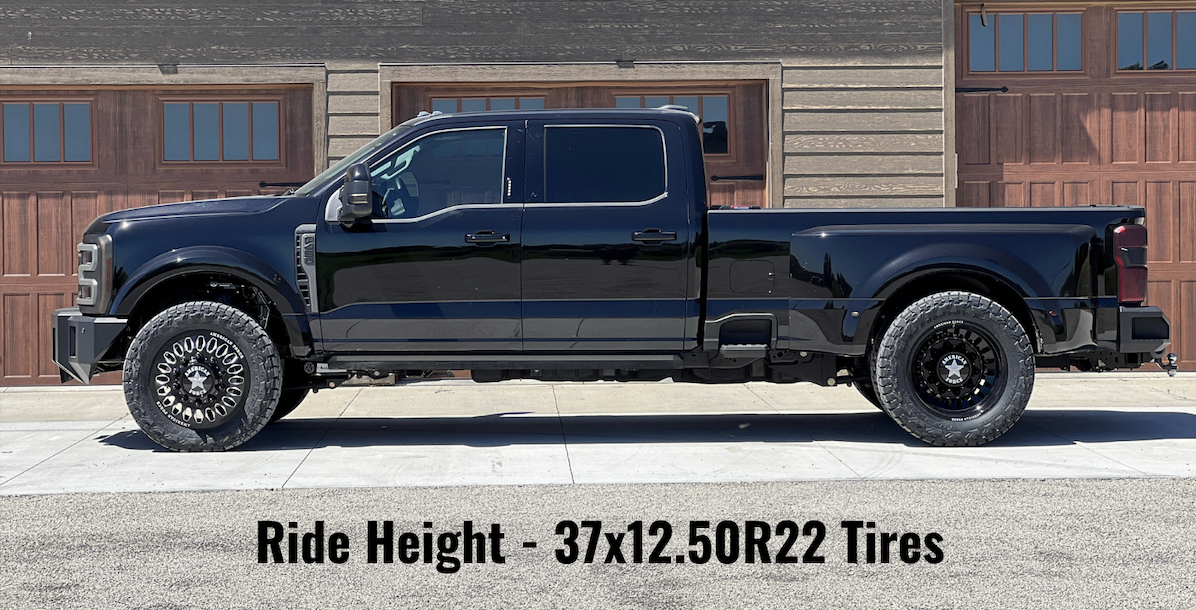

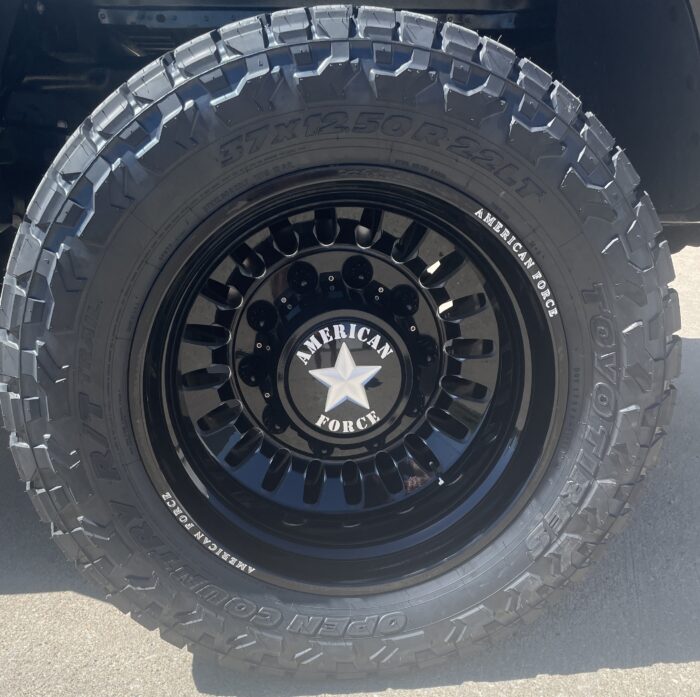

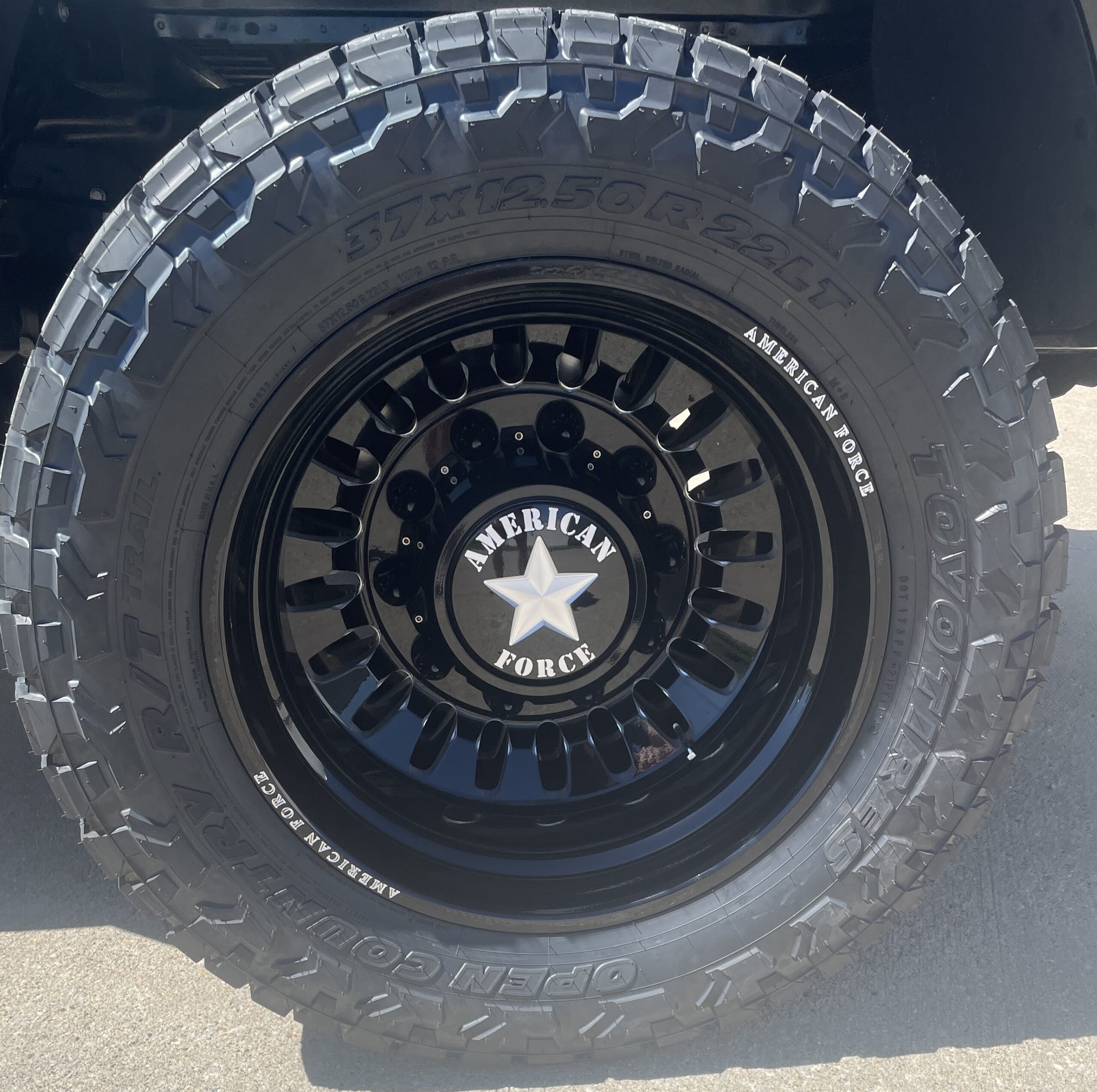

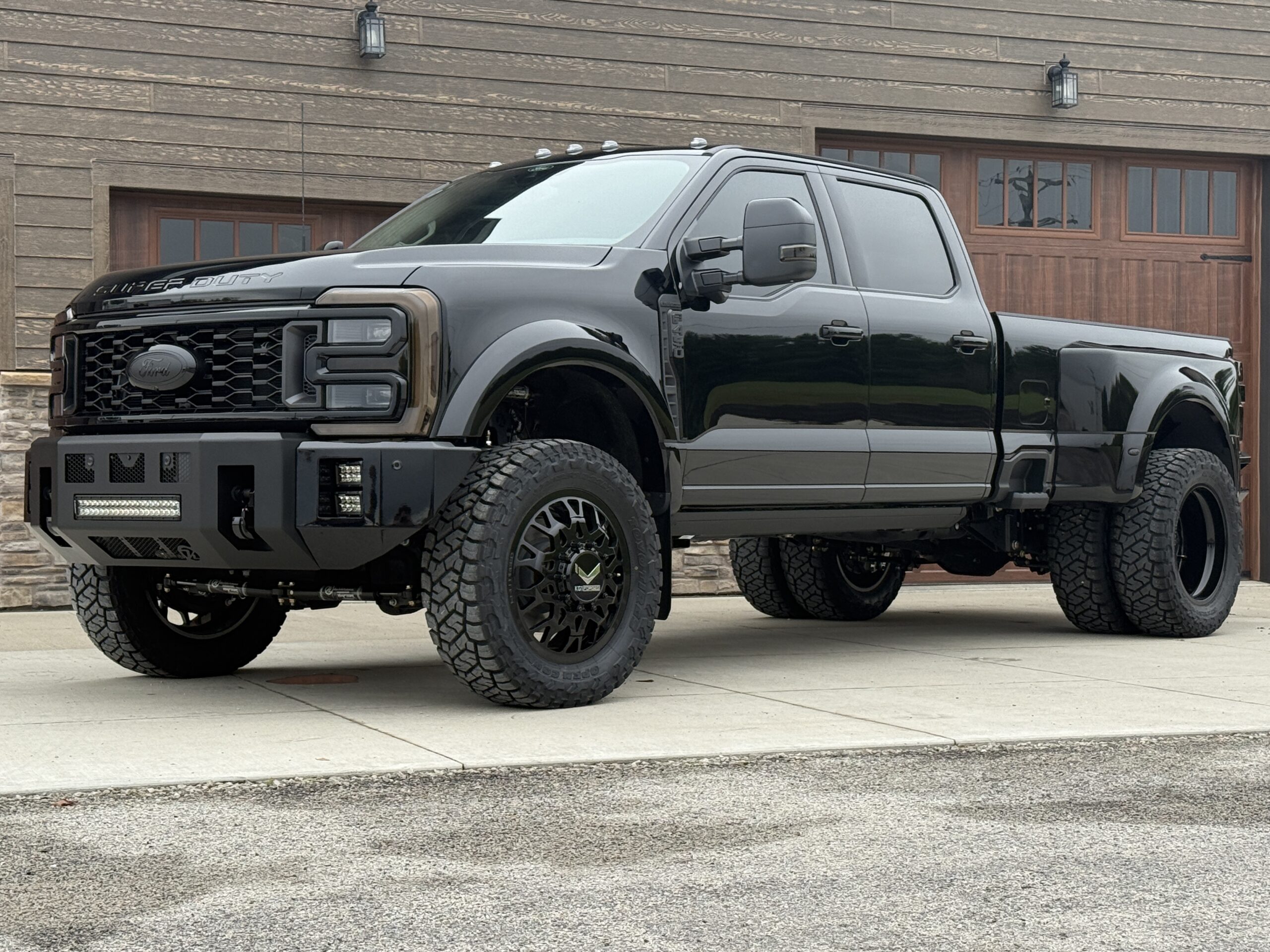

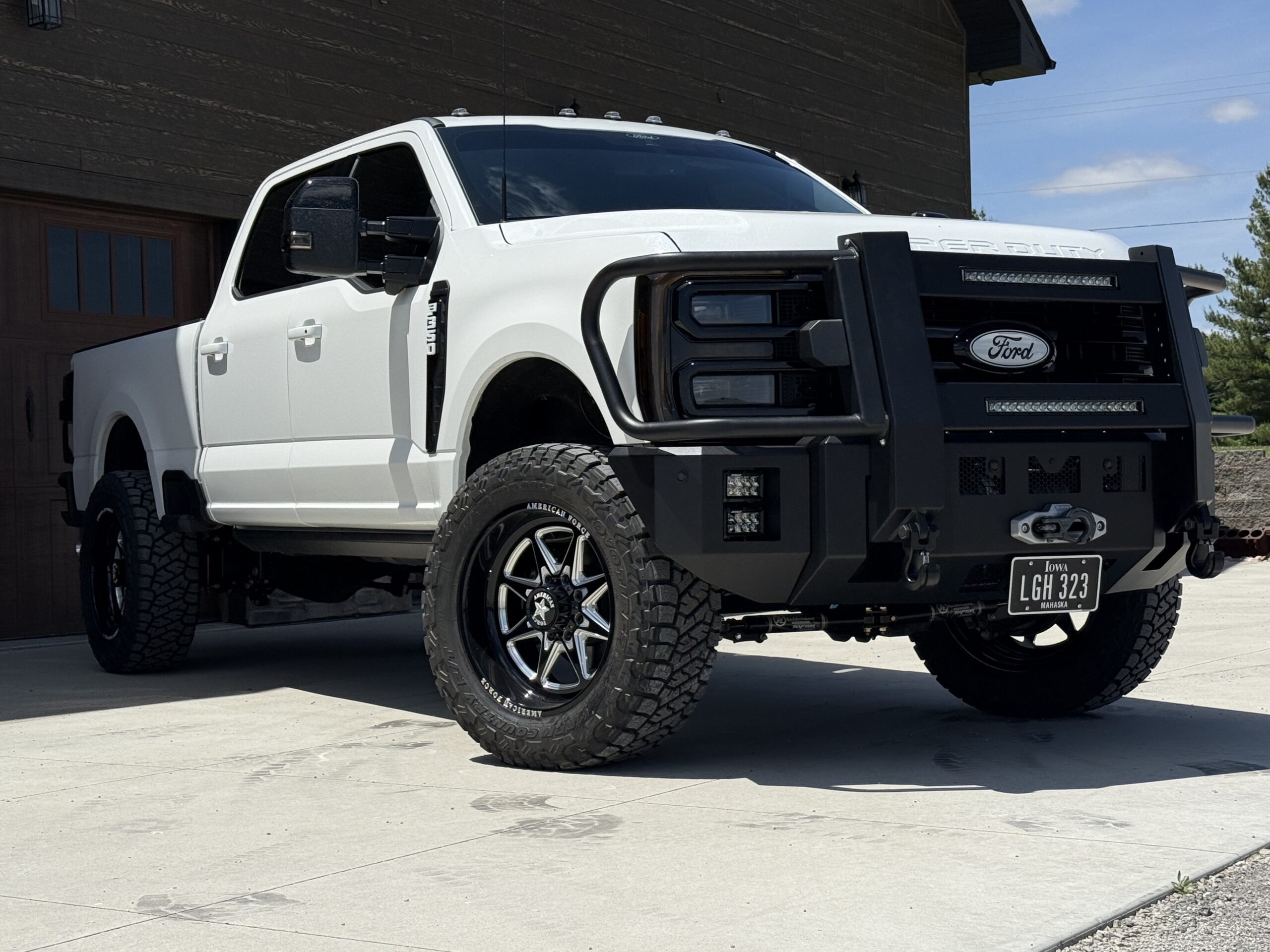

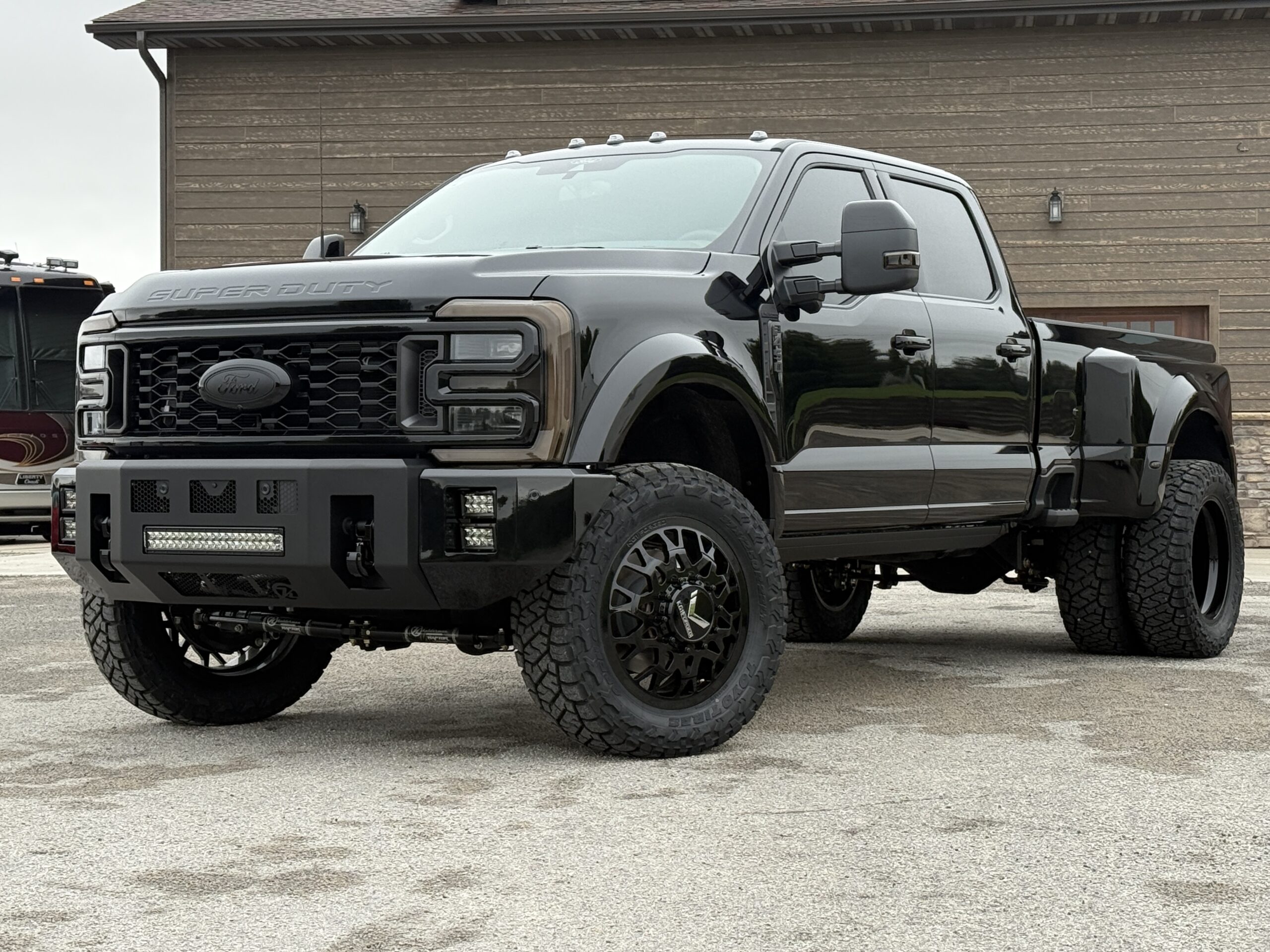

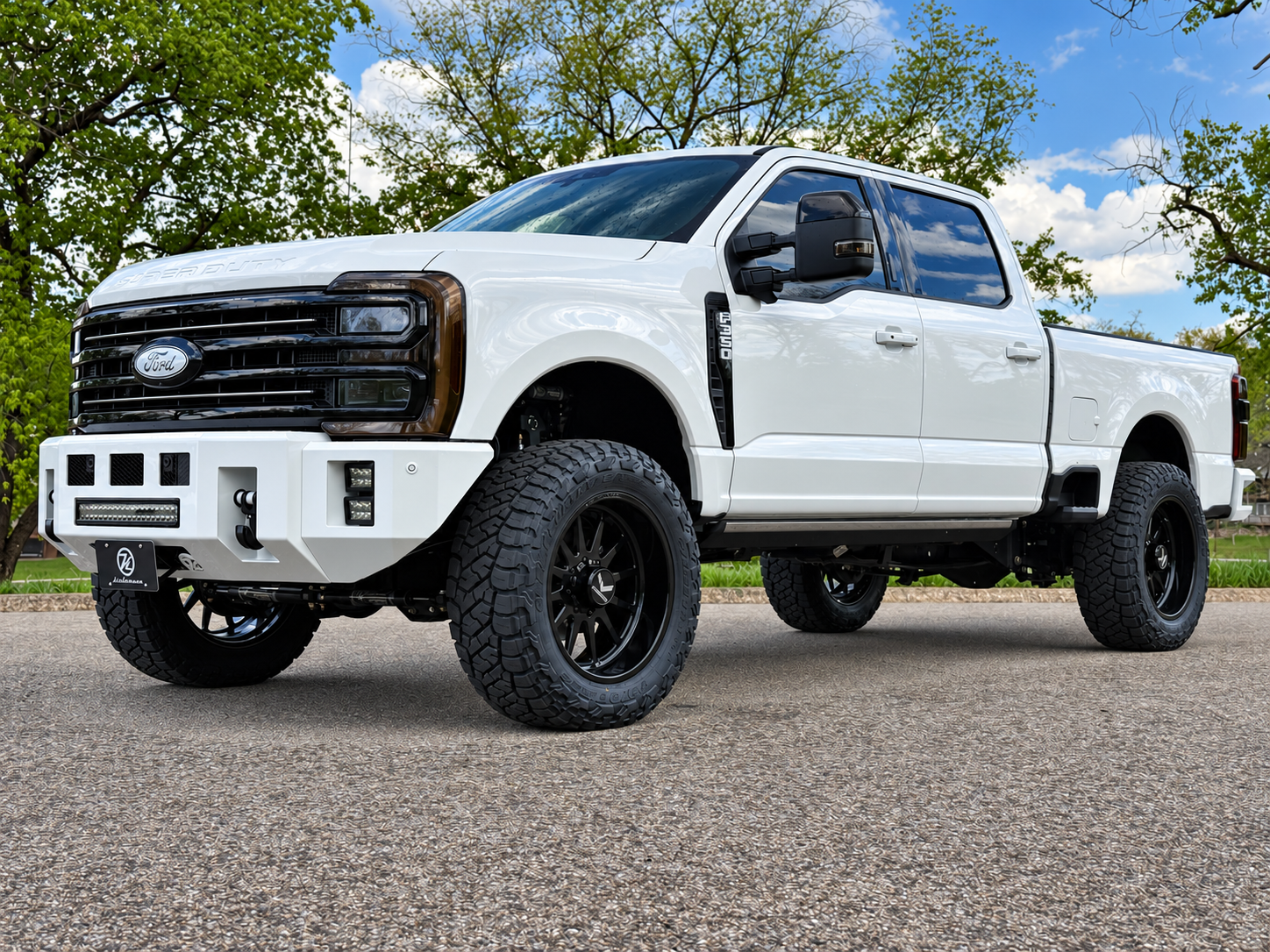

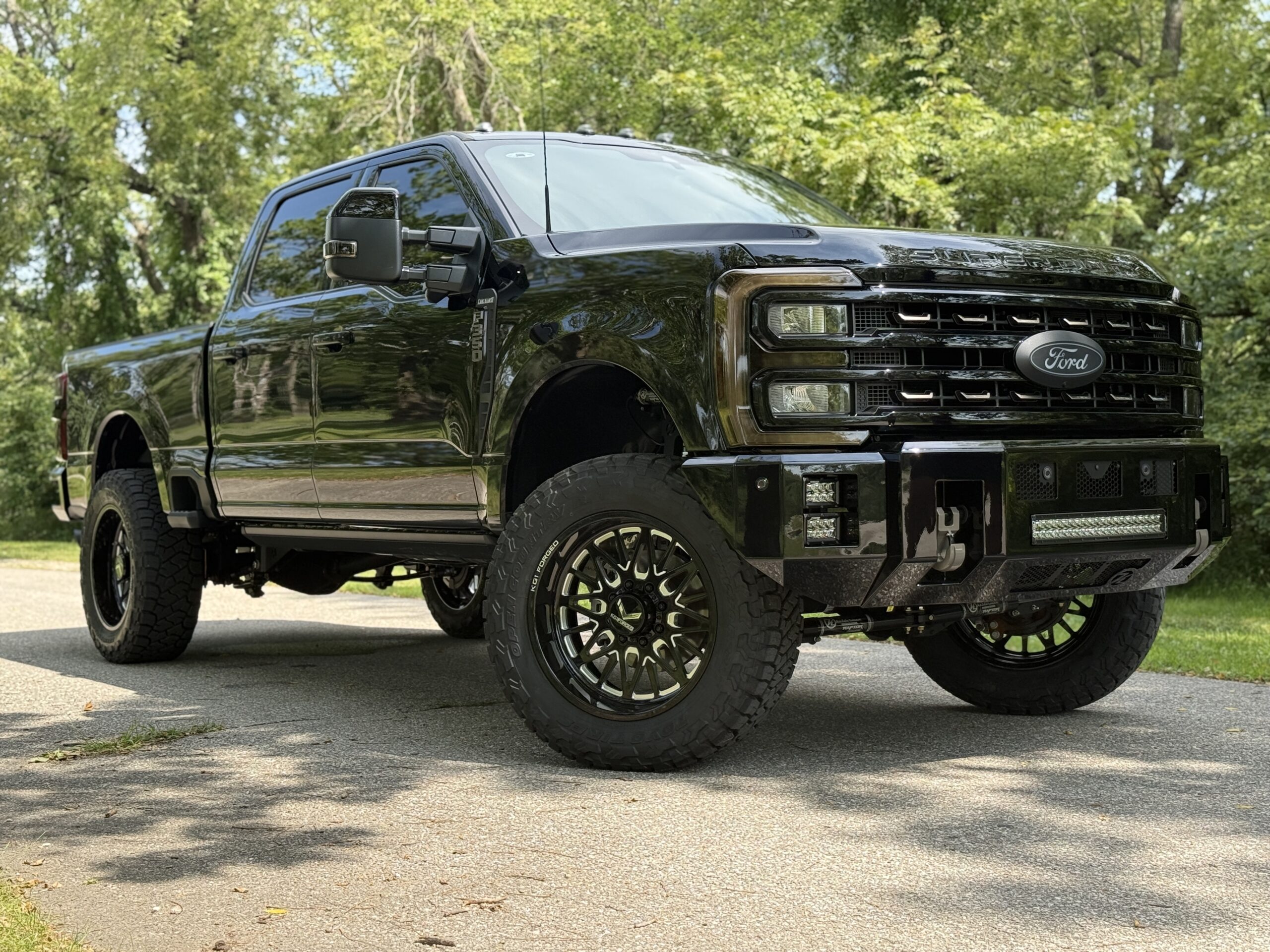

Introducing the all-new Kelderman 2-3″ Lift Kit for the 2023 Ford F-250, F-350, and F-450 4X4 Pickup Trucks. This kit gives the all-new Super Duty the smooth ride, towing ability, and adjustable height that Kelderman has delivered to the lift kit market for 20+ years. This listing is for a combined front and rear air suspension lift kit. Front-only or rear-only systems are also available. This kit will have a designed ride height of a 2-3″ lift for traveling down the road. It is adjustable down to approximately 1″ below stock height when deflated and up to an approximate 6″ lift when fully inflated. 37″ tires are recommended. This kit will work on trucks featuring the factory onboard scale option.

2-3″ Front Lift Kit

(F-250/F-350 – EARLY ’25 RELEASE)

(Part # 10016213, F-450)

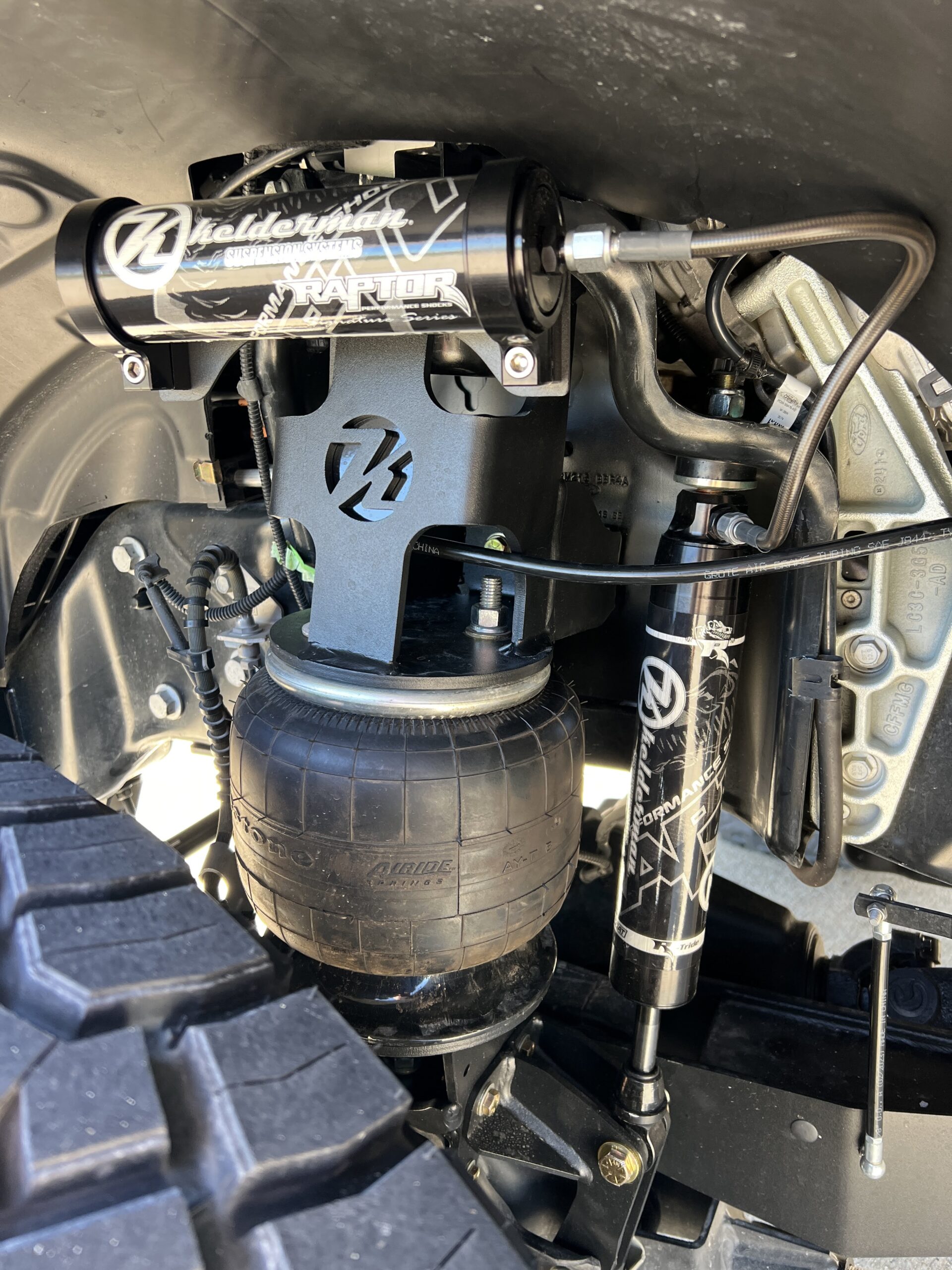

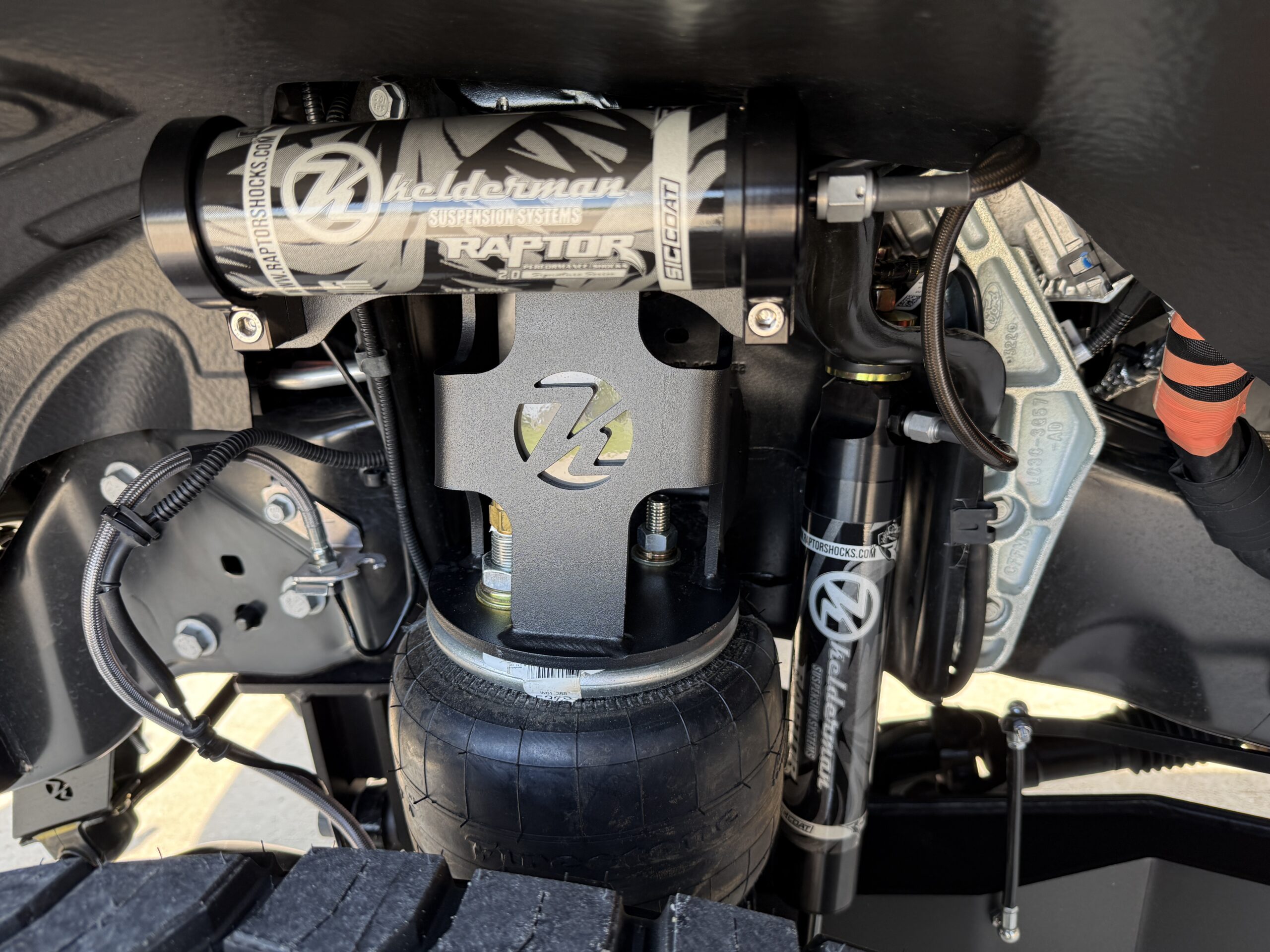

The front air suspension lift kit removes the OEM coil spring suspension and replaces it with upper and lower airbag mounts, a track bar drop bracket, sway bar drop brackets, new sway bar end links, industrial-strength airbags, a front driveshaft spacer, and a drop pitman arm. Kelderman 2.0 custom-valved shock packages are available for the best shock option. Shocks are designed and valved specifically for use with our air suspension setups. The front air suspension provides an improved ride quality, as well as a higher capacity than the OEM coil springs or any combination of coil springs, coil spring spacers, etc. You won’t have to worry about the front suspension sagging under the weight of your aftermarket bumper or any other weight on the front suspension with the air ride installed.

NOTE: This kit is compatible with and includes parts for use on trucks equipped with the factory Ford ride height sensor.

Dual Steering Stabilizer Assembly

(Part # 10015292, F-250/F-350)

(Part # 10015862, F-450)

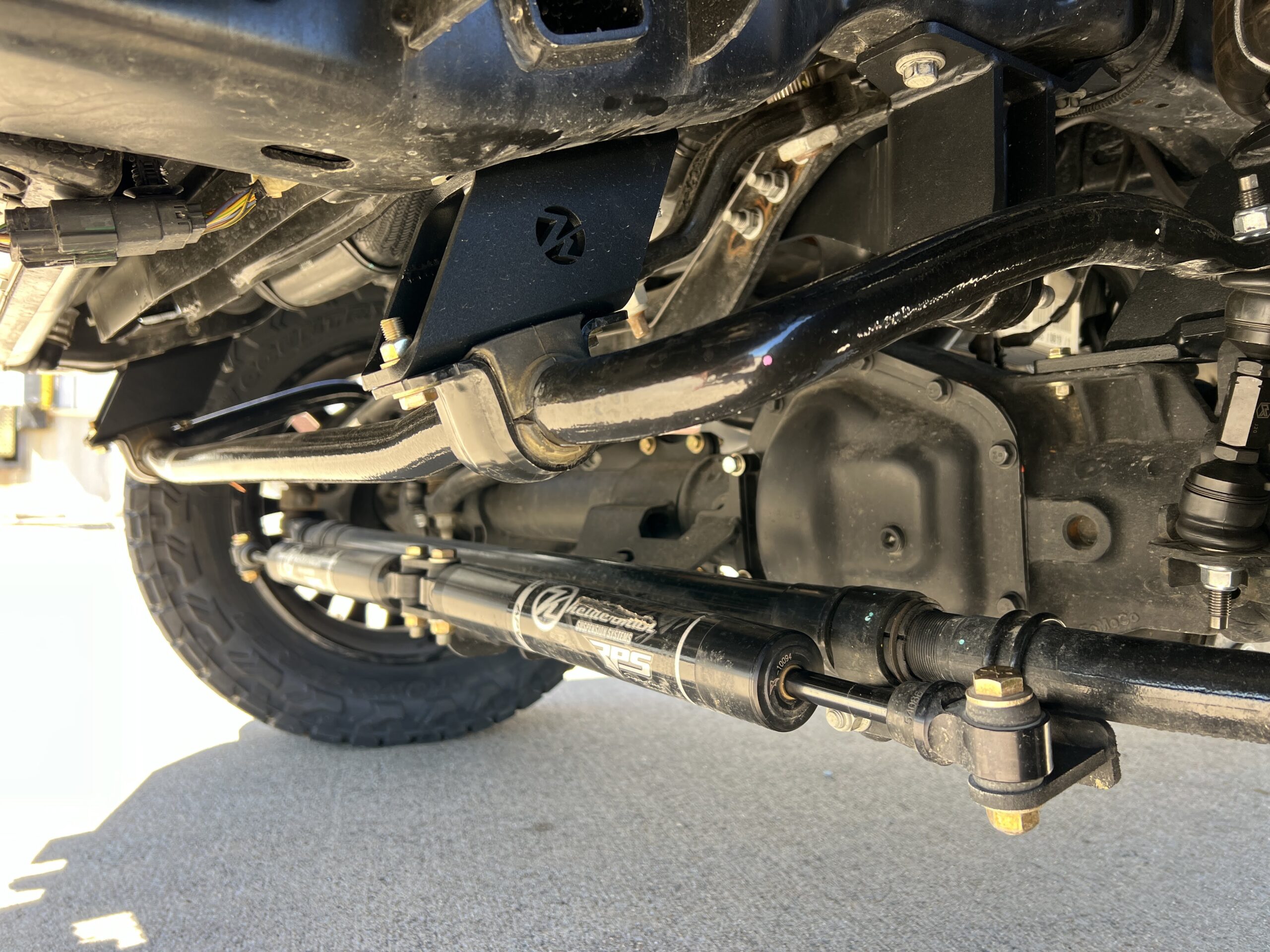

A Kelderman dual-steering stabilizer bracket is also available for these trucks to improve the steering feel and eliminate any feedback through the steering wheel. This bracket is the ultimate solution for improving steering, improving stability, and preventing the infamous Ford ‘death wobble’. It works by providing additional support to the steering system, helping to reduce the impact of bumps, potholes, and other road hazards. With this installed, you will experience smooth, more responsive steering and increased control over your truck.

Fabricated Radius Arm Upgrade

(Part # 10015144, F-250/F-350,F-450)

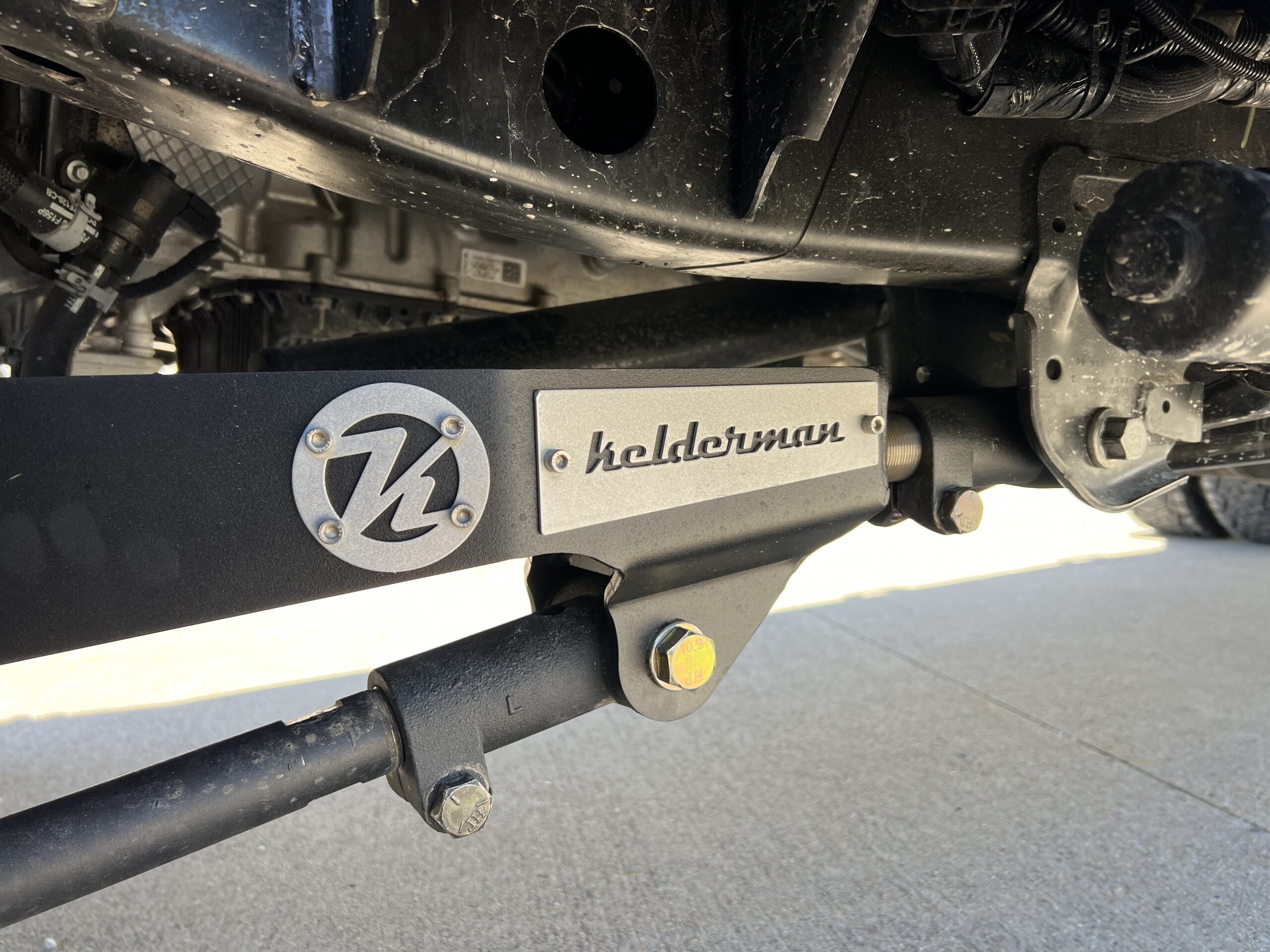

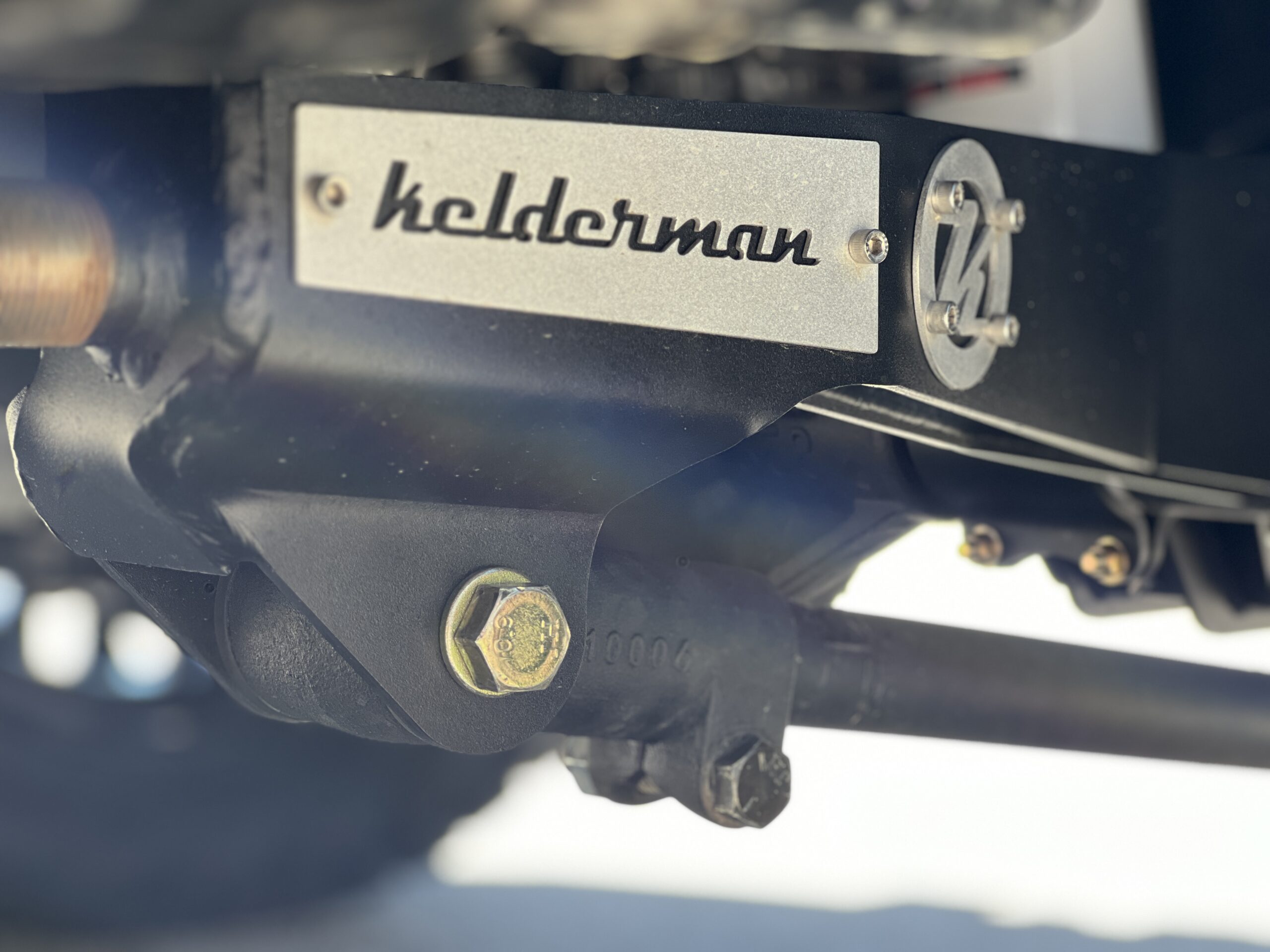

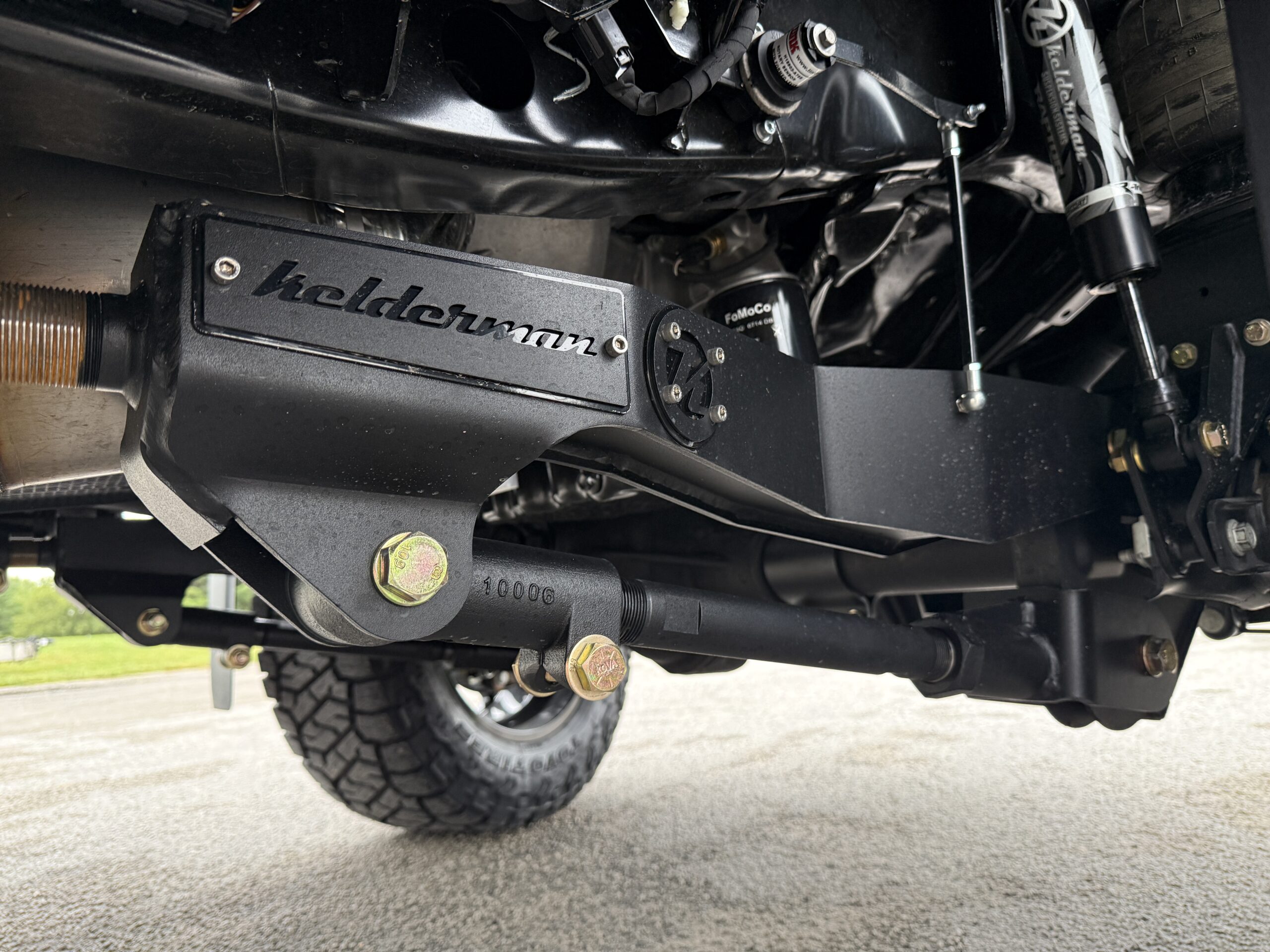

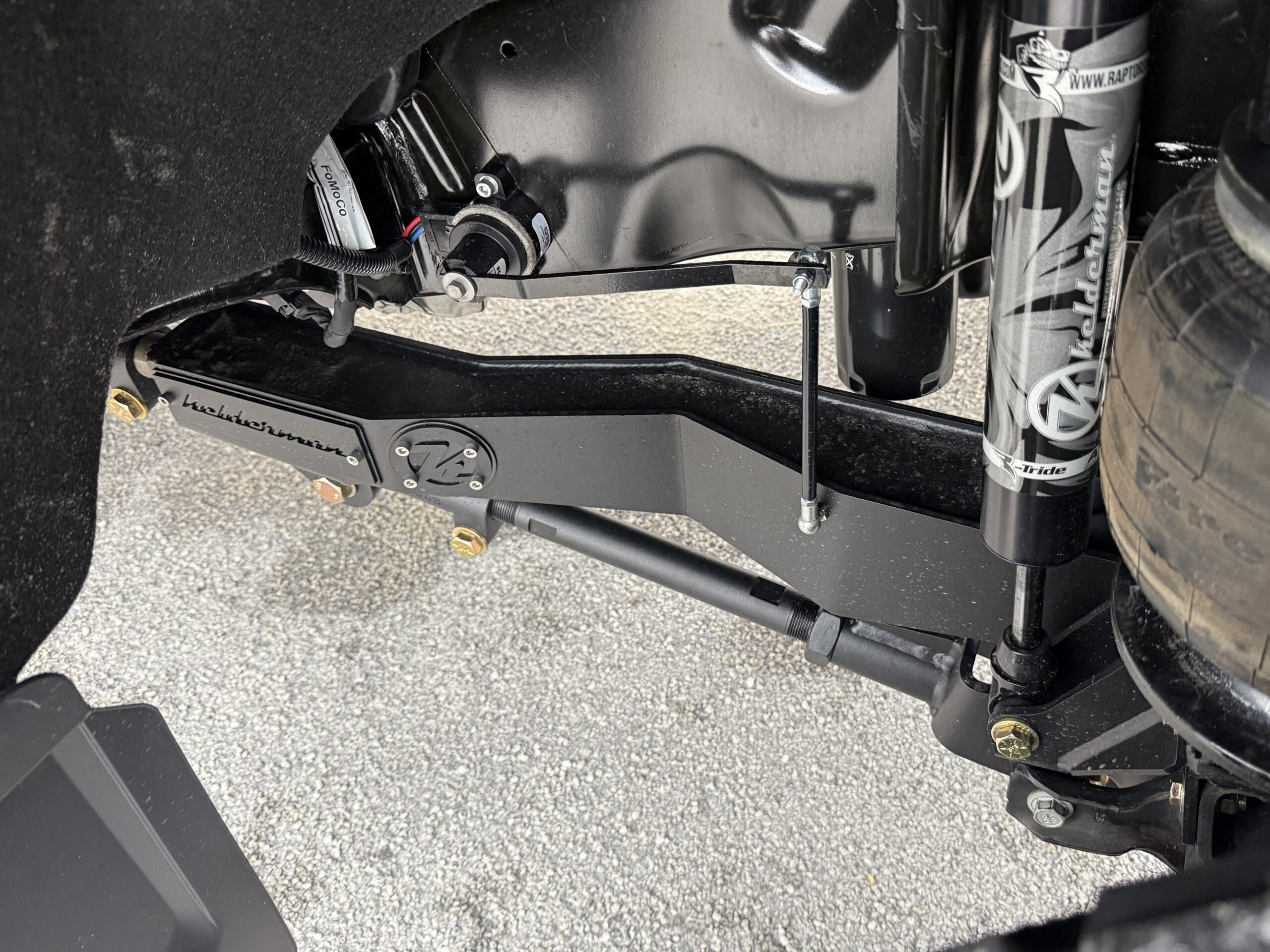

Made with high-quality materials and precise engineering, the Kelderman fabricated radius arm upgrade is included as part of the 2-3″ Air Suspension Lift Kit. These radius arms feature an improved appearance over the factory arms, as well as adjustable caster bolts to aid in front-end alignment. They provide you with an excellent place for accent colors for a unique touch on your suspension.

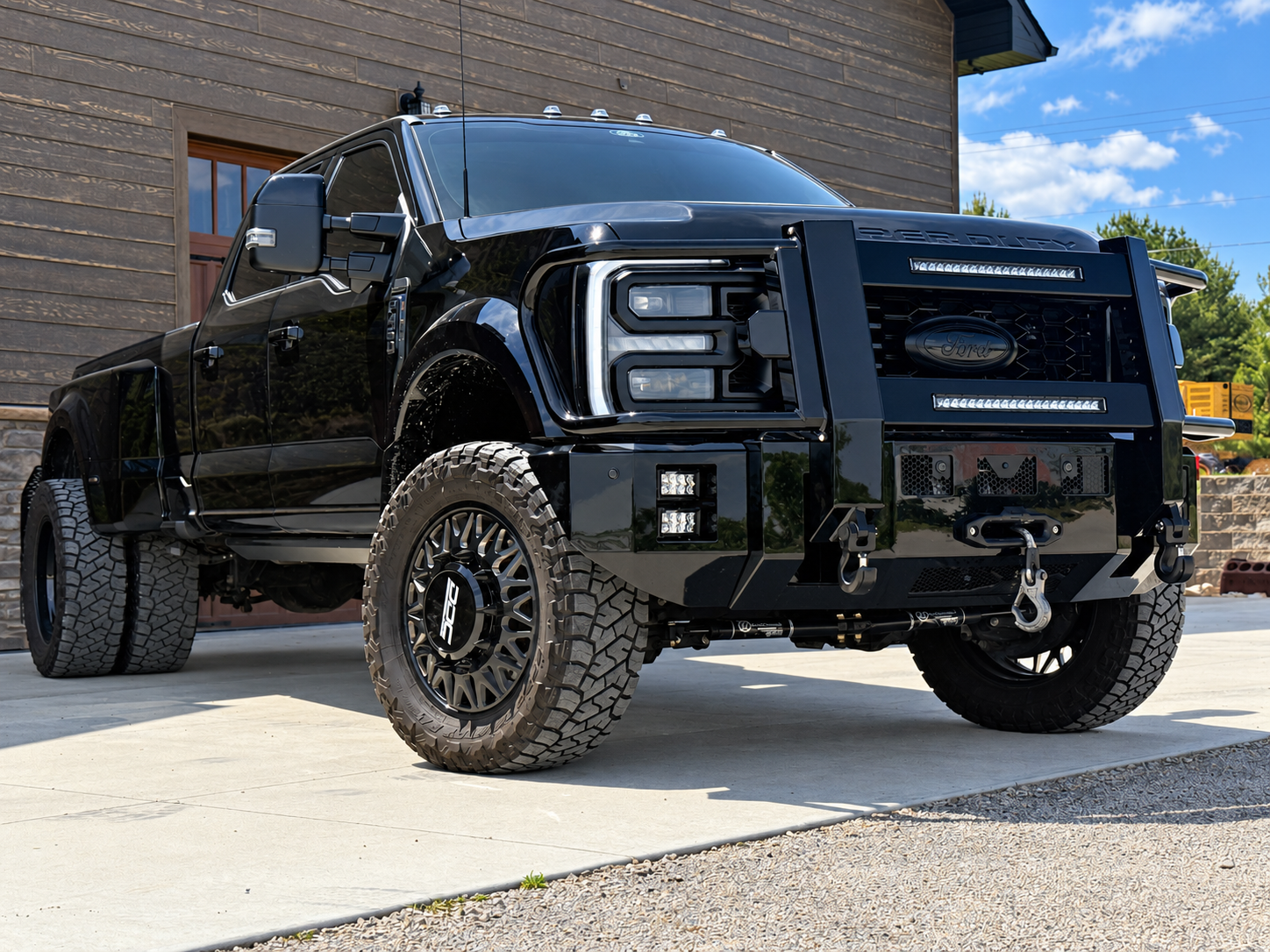

NOTE: The 2-3″ front air suspension kit and radius arms will push the front axle approximately 1″ forward to clear 37″ tires. The 37″ tires will not clear with a factory bumper unless modified. We would recommend using a Kelderman Alpha Series Front Bumper or Delta Series Front Bumper or using a front bumper spacer kit.

Rear Air Suspension Kit

(Part # 10015188, 3.5″ Rear Axle)

(Part # 10015168, 4.0″ Rear Axle

(Part # 10015113, 4.5″ Rear Axle)

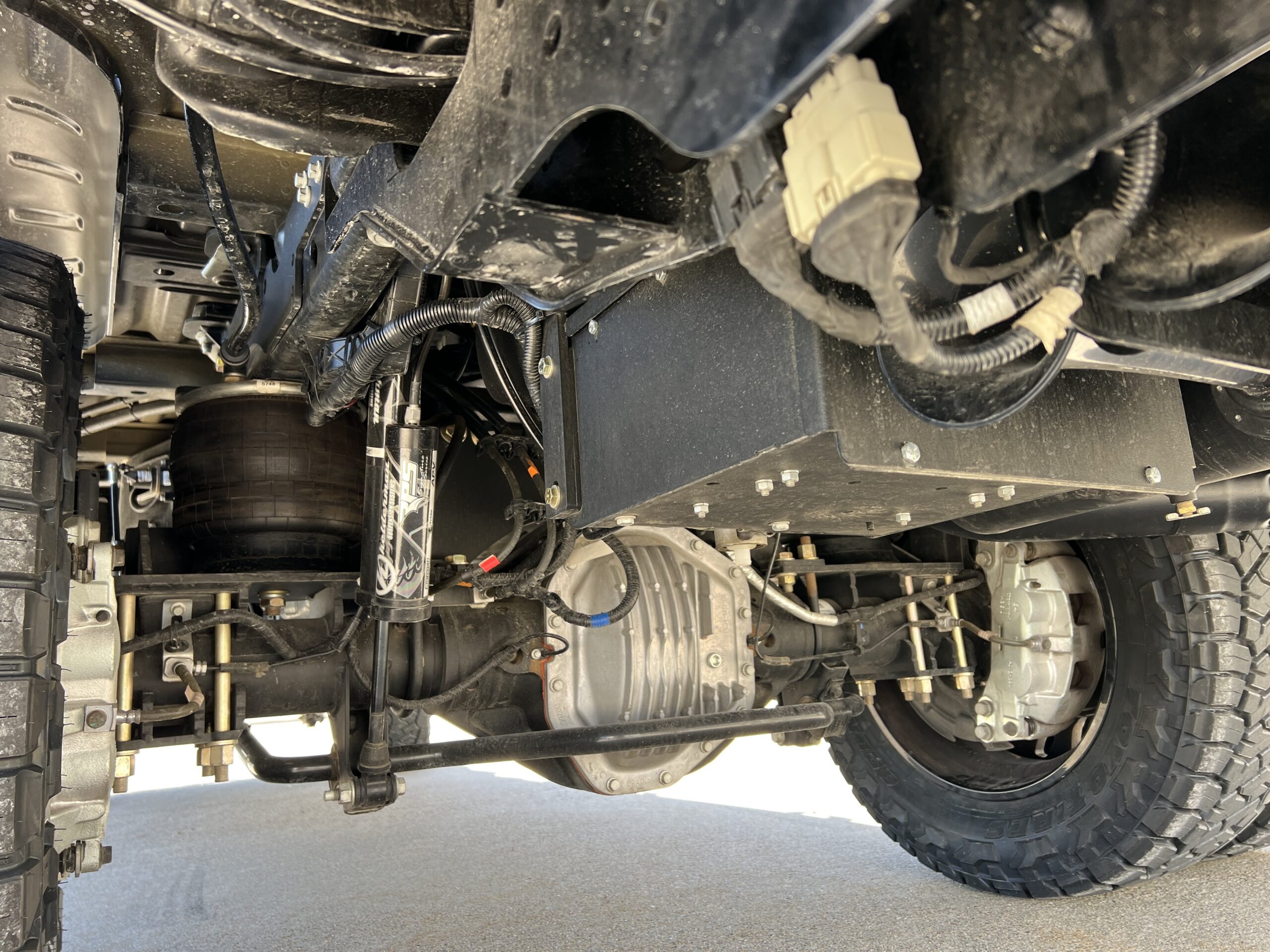

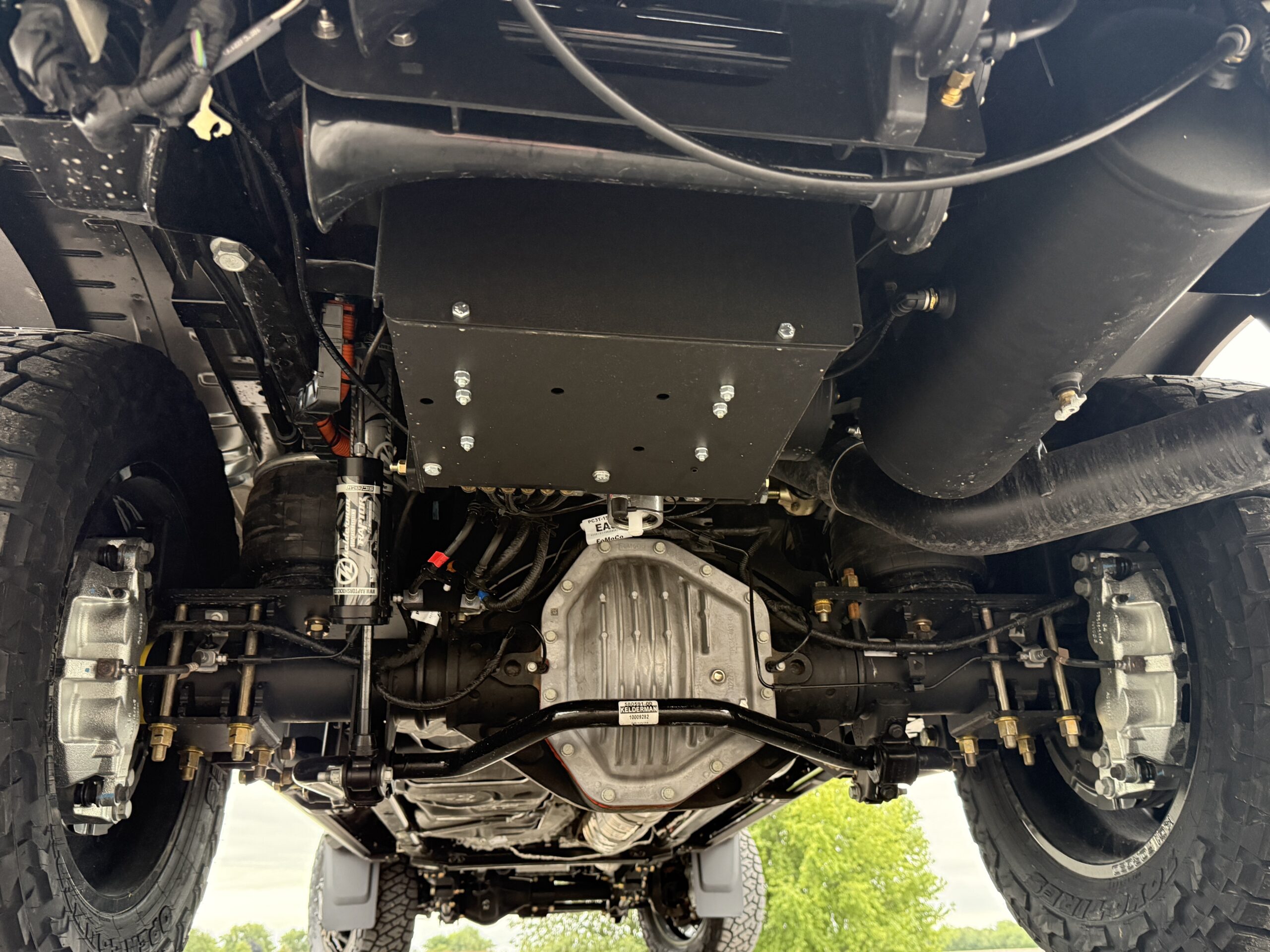

The rear air suspension system utilizes a 4-link design for superior stability and control while towing, as well as a more comfortable ride. With the optional air control systems, it is fully adjustable, allowing you to fine-tune the suspension to your specific needs. The four-link design distributes the load evenly, reducing the stress on the suspension and improving overall performance.

This rear air suspension kit provides an unbeatable combination of performance, comfort, and capability. Whether you’re hauling a heavy load or cruising down the highway, a Kelderman Air Suspension System can help you get the job done with ease. Upgrade your 2023+ Super Duty and experience the difference for yourself. This kit is compatible with and includes parts for use on trucks equipped with the factory Ford ride height sensor.

NOTE: The base price includes the 2-3″ Front Air Suspension, fabricated radius arm upgrade, and the Stock Height 4-Link Rear Air Suspension. Air control systems, shock packages, and other options are add-ons to the lift kit package. Front-only and rear-only air suspension systems are also available.

Optional Air Control Systems:

The base version of these front and rear air suspension systems will be in a ‘manual fill’ package. This provides you with the necessary amount of air line, fittings, and Schrader valves to inflate and deflate the suspension like you would a tire. Several air control systems are available, so let’s go through some popular options.

Air Lift 3H Electronic Air Control System (Part # ESLK3H2)

Are you looking for maximum control over your air suspension? In addition to its self-leveling abilities, this electronic air control system allows you to manually adjust the suspension at all four corners. The in-cab remote has the capability for five preset positions and manual control over the entire suspension system. Dual VIAIR air compressors and dual 3-gallon air tanks provide the air supply necessary to raise & lower the truck. The 3H system also has Bluetooth connectivity and lets you see the in-cab control screen right on your phone. You can wirelessly connect to the truck suspension and control everything with the touch of a button, inside or outside of the truck. Using the remote or app, you can drop the suspension from the 2-3″ ride height setting down to a 1″ below factory height or raise it to a 6″ lift when fully inflated. This makes it easier for you to enter or exit the truck, park in a low-clearance garage, go through your favorite car wash/drive-thru, and make hooking up to your trailers a breeze!

With great functionality also comes great reliability. This air control system features a combination of parts that Kelderman has trusted for years in a variety of air suspension applications. Military-grade ride height sensors provide feedback to the control system to maintain the proper ride height for correct suspension travel, load leveling, and optimum ride quality. The onboard air dryer removes moisture from the system and is operated with its in-cab purge button. Purging moisture from the control system periodically will prevent damage to the components and keep you functioning in cold weather. The 3H Air Control System features a steel compressor box enclosure to house the air compressors and a number of other electronic components in a weather-resistant area to protect it from road debris and weather and to reduce overall noise. This is the most common air control choice for our lift kit applications.

Mechanical, Self-Leveling Air Control System (Part # SLKD2WD + HCVLK’s):

This air control system includes (1) 100% duty cycle VIAIR air compressor, (1) 3-gallon air tank, two mechanical height control valves, height control valve linkages, (2) dump valves, an air dryer, plus all wiring, fittings, and connections for installation. The air compressor is contained within a weather-resistant enclosure to protect the vital elements of the control system.

An in-cab control panel is provided allowing you to control the ON/OFF power to the air compressor and a dump switch to activate the rear dump valve option. You can also use your factory auxiliary/upfitter switch panel for these two switches in place of the Kelderman control panel. This configuration allows the front and rear suspension to automatically adjust the pressure within the airbags to maintain the designed ‘ride height’ of the suspension. As soon as you hook up to a trailer, the mechanical height control valves move with the suspension’s adjustment and pull air from the onboard air tank to inflate back to the ‘ride height’ position. It will also manually bleed off air pressure when you’re unloading weight, unhooking a trailer, etc. The dump valves are designed for use with the rear air suspension and allow you to flip a switch, deflate the rear suspension down approximately 4″, and pull right out from under your trailers. The onboard air dryer removes moisture from the system periodically to prevent damage to components and remain operational in cold temperatures and climates.

Mechanical, Self-Leveling Air Control System – Dual Compressor & Tank (Part # 30664 + HCVLK’s):

Want more air for your air suspension? This air control system is identical to the system referenced above but with an additional air compressor and air tank. We tend to see this more with serious work truck applications, fleet use, trucks running at MAX GVWR, or those that plan to regularly raise & lower the rear air suspension. The additional air compressor and tank provide a quicker recovery time and make sure plenty of air is available for raising & lowering the suspension and any necessary ride height adjustments.
